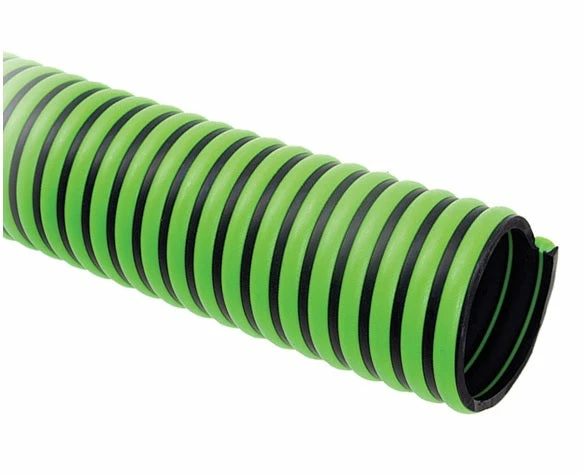

Tigerflex Green Premium EPDM Suction Hose (Hose Only - No Ends)

Tigerflex Green Premium EPDM Suction Hose (Hose Only – No Ends)

Original price was: $4.64.Current price is: $3.62.

Step 1: Select Hose Diameter

Step 2: Click on Hose Length to Display part number and price

Clear

SKU: hose-and-fittings-4410713014333 Categories: Hose and Fittings, Parts Tags: Hose-and-fittings, Suction and Discharge Hose, Tigerflex

Nature-friendly materials, for a better planet.
The Quality Choice for Smart Shoppers
There are quality problems, free return and exchange
Free Shipping over $25

Tigerflex EPDM Hose is ideal for pump suction & discharge, as well as for sewer truck vacuum service. Tigerflex Tiger Green TG Series EPDM Hose Assemblies provide the ideal combination of light-weight, flexibility, durability and chemical resistance. Tiger Green TG was tested and was shown to be up to 22% more flexible than other brands of hoses, especially in sub-zero weather.

Full vacuum rating: 29″ Hg.
Temperature Range: -35°C to +60°C.

How to Order: If you would like a 20 foot coil of hose, select the “Per Foot” box. Then enter quantity of 20 in the “Add to Cart” box. This will ensure you get a 20 foot length of hose.

Hose Size	Working Pressure	Bend Radius	Outside Diameter	Recommended SS Gear Clamp	Recommended Bolt Clamp
1″	65 PSI	2″	1.40″	0.75″ to 1/75″ G8-20	1.34″ to 1.46″ G94-3437
1-1/4″	60 PSI	3″	1.63″	1.06″ to 2.00″ G8-24	1.57″ to 1.69″ G94-4043
1-1/2″	50 PSI	4″	1.93″	1.56″ to 2.50″ G8-32	1.85″ to 2.01″ G94-4751
2″	50 PSI	5″	2.51″	2.06″ to 3.00″ G8-40	2.48″ to 2.68″ G94-6368
3″	45 PSI	7″	3.60″	3.06″ to 4.00″ G8-56	3.58″ to 3.82″ G94-9197
4″	40 PSI	11″	4.70	3.50″ to 5.50″ G8-80	4.41″ to 4.76″ G94-112121

Step 1: Select Hose Diameter	1", 1-1/4", 1-1/2", 2", 3", 4"
Step 2: Click on Hose Length to Display part number and price	Per Foot, 100 Foot Roll
