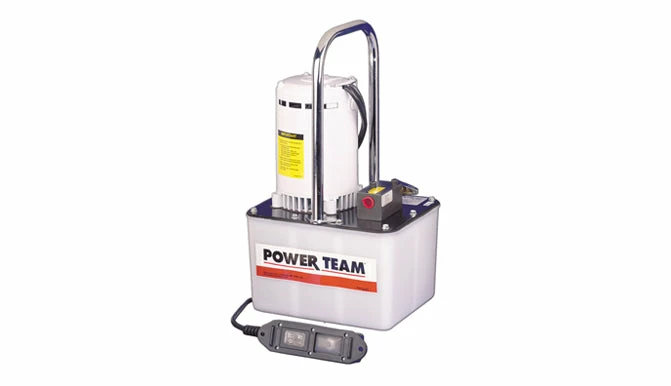

- For maintenance and construction applications.
- For use with single-acting or double-acting cylinders at operating pressures to 10000 psi.
- For intermittent duty; starts under full load.
- Equipped with 1/2 hp, 3450 rpm, single-phase, thermal protected induction motor; 10 ft. remote control cord (PE172S has 25 ft. cord).
- Low amperage draw; small generators and low amperage circuits can be used as power source.
- Extremely quiet with noise level ranging from 67-81dBA.
The remote motor control switch
| SPECIFICATIONS | |
| Item # | PWTPE172 |
| Description | Base model pump has 1/2 hp pump with 2 gallon thermoplastic reservoir. |
| Capacity | 17 cu. inch/min |
| For Use With | Single Acting |
| Valve Type | 2 – Way |
| Valve No. | 9517 |
| Valve Function | Advance Return (Auto) |
| Control Switch | Remote Motor Control (10 ft.) on/off |
| Motor | 1/2 hp 110/115 V 50/60 Hz, Single Phase |
| Reservoir Usable Oil Capacity | 295 cu. inch |
| Speed | 2 |
| Maximum Pressure Output | 10000 |
| RPM | 3450 |
| dBa at Idle and 10000 psi | 67/81 |

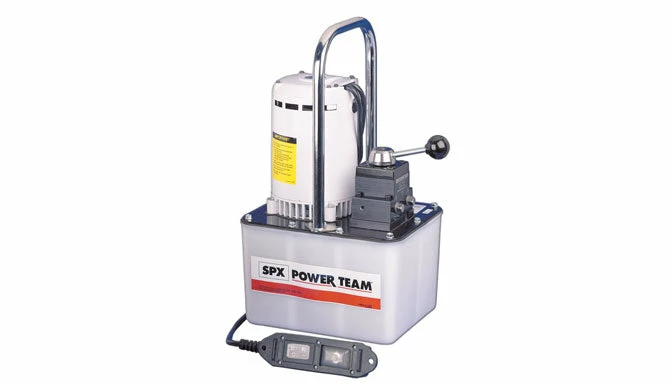

| Item # | PWTPE174 |
| Description | same as PE172, except has 9500 double-acting valve. |
| Capacity | 17 cu. inch/min |
| For Use With | Single and Double Acting |
| Valve Type | 4 – Way |
| Valve No. | 9500 |
| Valve Function | Advance Hold Return |
| Control Switch | Remote Motor Control (10 ft.) on/off |
| Motor | 1/2 hp 110/115 V 50/60 Hz, Single Phase |
| Reservoir Usable Oil Capacity | 295 cu. inch |
| Speed | 2 |
| Maximum Pressure Output | 10000 |
| RPM | 3450 |
| dBa at Idle and 10000 psi | 67/81 |

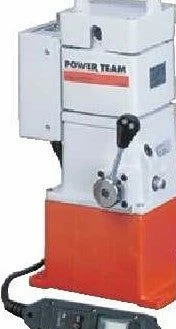

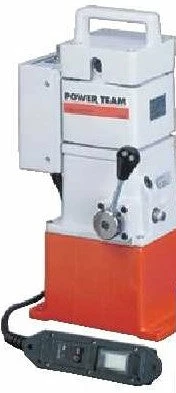

- Vanguard Jr. pumps provide two-speed high performance in a light-weight, compact package.
- Gauge port provided on pump. Metal reservoir on all models.
- Equipped with a 1/2 hp, 110/115 volt, 60/50 Hz single phase motor that starts under load, even at reduced voltage.
- Low amperage draw permits use with smaller generators and low amperage circuits.
- All pumps have a 10 foot remote control (except PE183C which has 25 foot remote control).
- CSA rated for intermittent duty. High noise level of 85-90 dBA.
| SPECIFICATIONS | |
| Item # | PWTPE182 |
| Description | Base model pump has 1/2 hp pump with 2-Way valve and 1/2 gal. reservoir. |
| Capacity | 18 cu. inch/min |
| For Use With | Single Acting |
| Valve Type | 2-Way |
| Valve Function | Advance Hold Return |
| Control Switch | Remote Motor Control (10 ft.) on/off |
| Motor | 1/2 hp 110/115 VAC 50/60 Hz A.C., Single Phase |
| Reservoir Usable Oil Capacity | 104 cu. inch |
| Maximum Pressure Output | 10000 psi |
| RPM | 12000 |
| dBa at Idle and 10000 psi | 85/90 |
| Item # | PWTPE184 |
| Description | Base model pump has 1/2 hp pump for doubleacting systems with 1/2 gal. reservoir. |
| Capacity | 18 cu. inch/min |
| For Use With | Single and Double Acting |
| Valve Type | 4-Way |
| Valve Function | Advance Hold Return |
| Control Switch | Remote Motor Control (10 ft.) on/off |
| Motor | 1/2 hp110/115 VAC 50/60 Hz A.C., Single Phase |
| Reservoir Usable Oil Capacity | 104 cu. inch |
| Maximum Pressure Output | 10000 psi |
| RPM | 12000 |
| dBa at Idle and 10000 psi | 85/90 |
