Spectra Precision LT56-2 Rugged Universal Laser Layout Tool Package

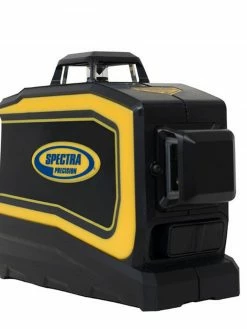

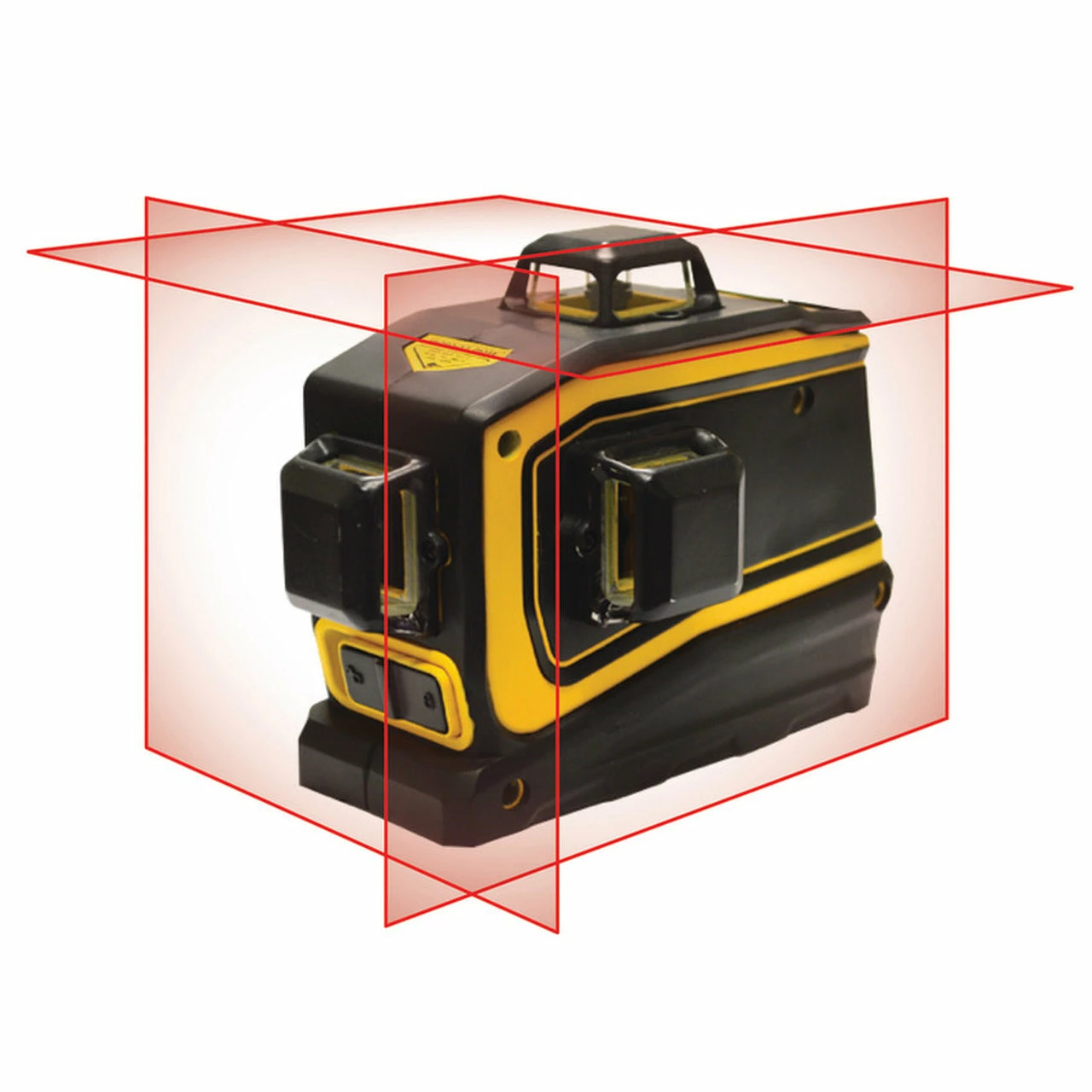

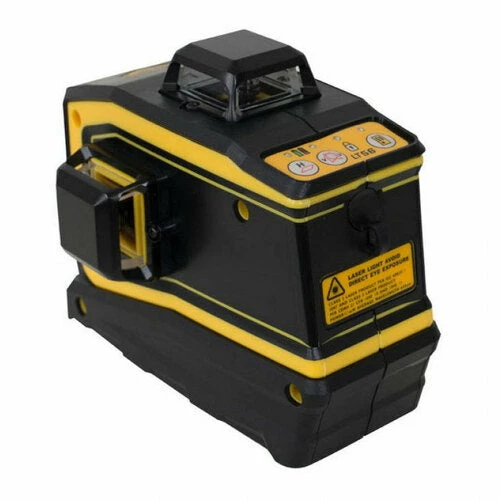

The Spectra Precision® LT56 Rugged Universal Laser Layout Tool provides three 360 degree planes of laser light. A horizontal plane and 2 vertical planes 90 degrees apart provide all the reference required for a wide variety of interior applications including wall layout and installation, acoustic ceiling installation, point transfer, cabinet and chair rail installation, tile layout and horizontal and vertical alignment. The automatic self-leveling laser ensures ease of use.

The LT56 is powered by rechargeable lithium-ion batteries that typically can provide a battery life of 25 hours to 45 hours, depending on the number of laser planes used. The universal accessory allows mounting to ceiling grid, various sized tripods, columns and studs. The mount has fine vertical height and horizontal rotation adjustments for quick and easy setups. The HR220 laser receiver can be added to give the LT56 the added versatility of outdoor use.

The LT56 has been designed with a tough housing and generous over-mold to withstand the rigors of the professional construction environment. This rugged tool is specified to pass 3 foot drop tests

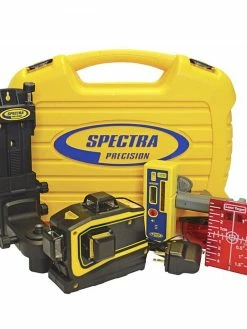

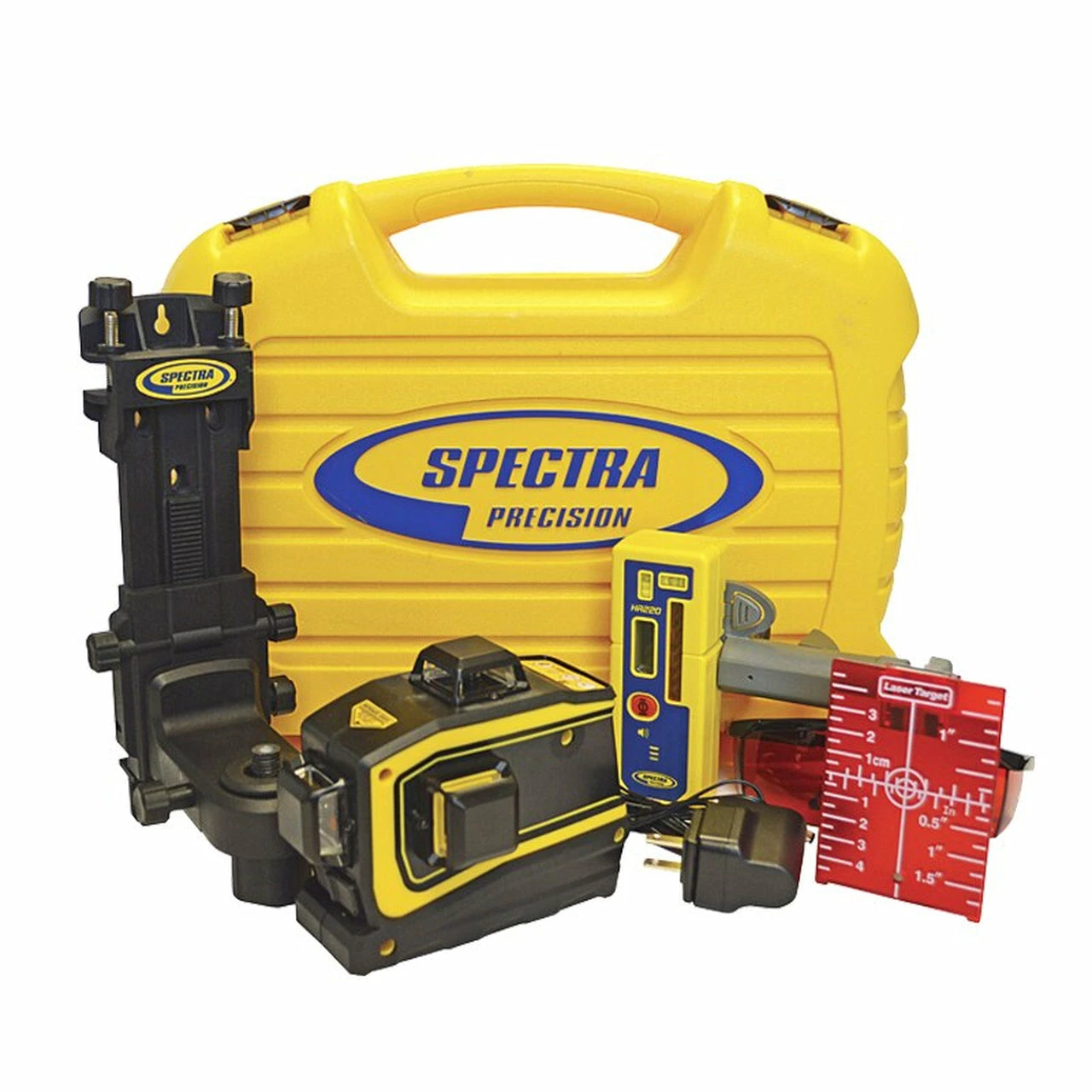

Spectra Precision LT56-2 Laser Kit INCLUDES:

• LT56 Laser Level Transmitter

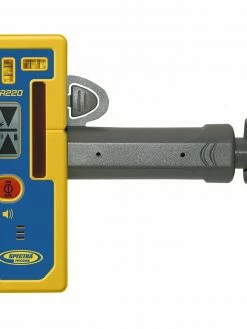

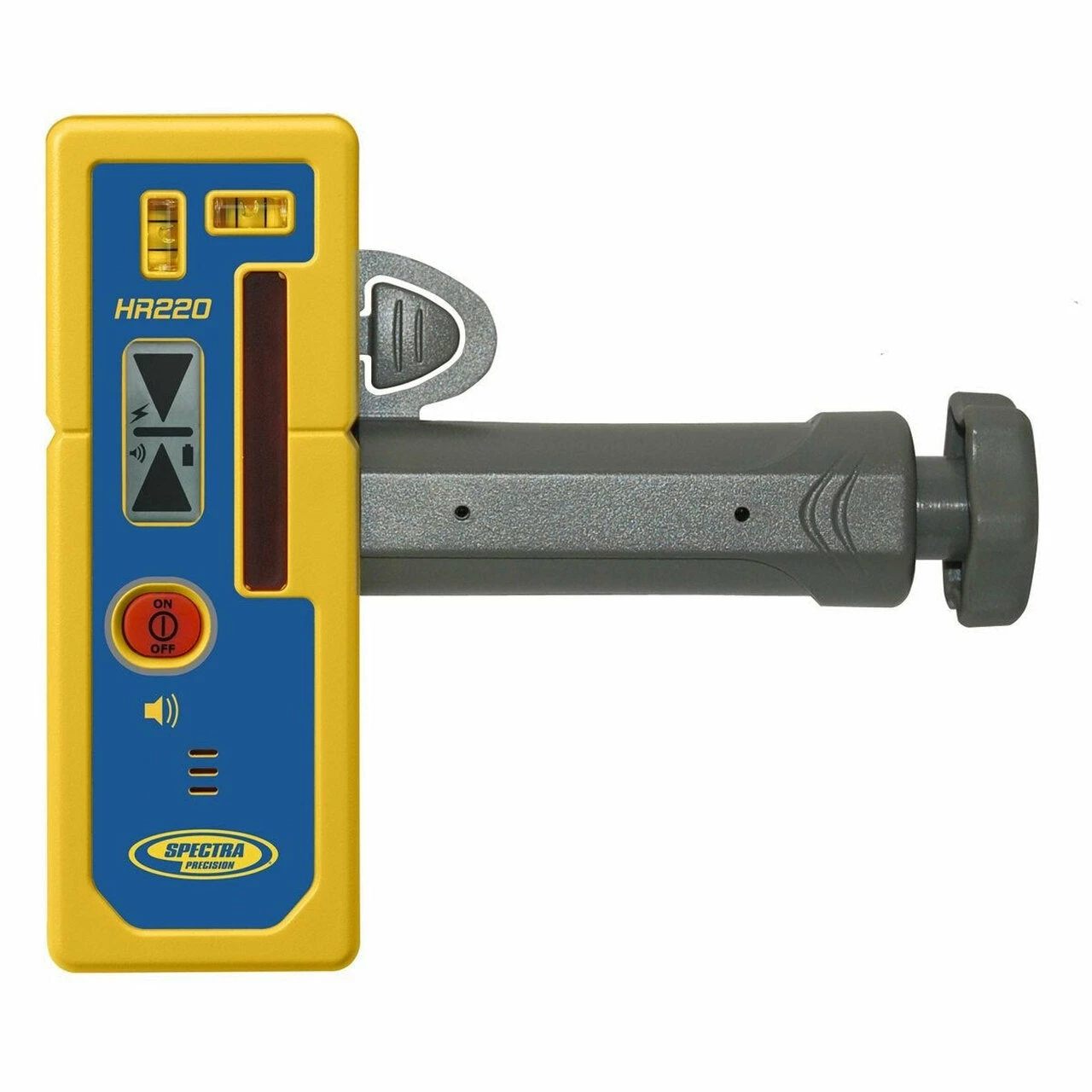

• HR220 Laser Receiver (Extend the Beam)
• 1215-1250 Universal Wall and Ceiling Mount
• Rechargeable Batteries : Lithium-Ion 7200 mAh
• Lithium-Ion Battery Charger
• Target
• Laser Glasses
• Carrying Case

FEATURES and BENEFITS:

• Bright crisp laser lines – extends the working range and are easy to see
• Lithium-Ion batteries provide 25 hour operating time – huge savings on battery cost compared to alkaline models and are ecological friendly
• Rugged and durable – 3 foot drop specification means the LT56 can keep working even after minor accidents
• Versatile mounting accessory – includes ceiling track, magnetic and tripod mounts with rotation and fine vertical adjustment
• The HR220 Line Receiver can be added for short range exterior layout and elevation control
• The unit can be mounted on standard tripods/mounting brackets using a 5/8 x 11 tripod mount or camera tripod (standard ¼ – 20)

SPECIFICATIONS
Laser Power	Less than 1 mw
Class / Wavelength	Class 2 / 635nm CDRH/IEC
Accuracy	1/4 inch @ 100 feet
Range with Optional Receiver	250 feet with optional receiver
Range Visible	80 feet
Mounting	Standard Tripod 5/8-11 or Camera 1/4-20
Batteries	Lithium-iion, 7200 mAh, 3.7 V
Battery Life	1 beam – 45 hours
	2 beam – 35 hours
	3 beam – 25 hours
Charge Time	12 hours (30 minute quick charge will provide 2 hours operation with 2 beams)
Battery Warranty	2 years
Charger	Input: 100-240v AC 190mA
	Output: 5V DC 500mA
Out of level indication	Flashing beam – tripple flash every 10 seconds
Self Leveling Range	4⁰±1⁰ all direction
Dust & Water Resistance	IP54
Operating Temperature	-10⁰ to 45⁰ (14⁰F to 113⁰F)
Storage Temperature	-20⁰ to 60⁰ (-4⁰F to 140⁰F)
Size (L x W x H)	4.6 x 6.0 x 3.3 inch
Weight	1.48 lbs
