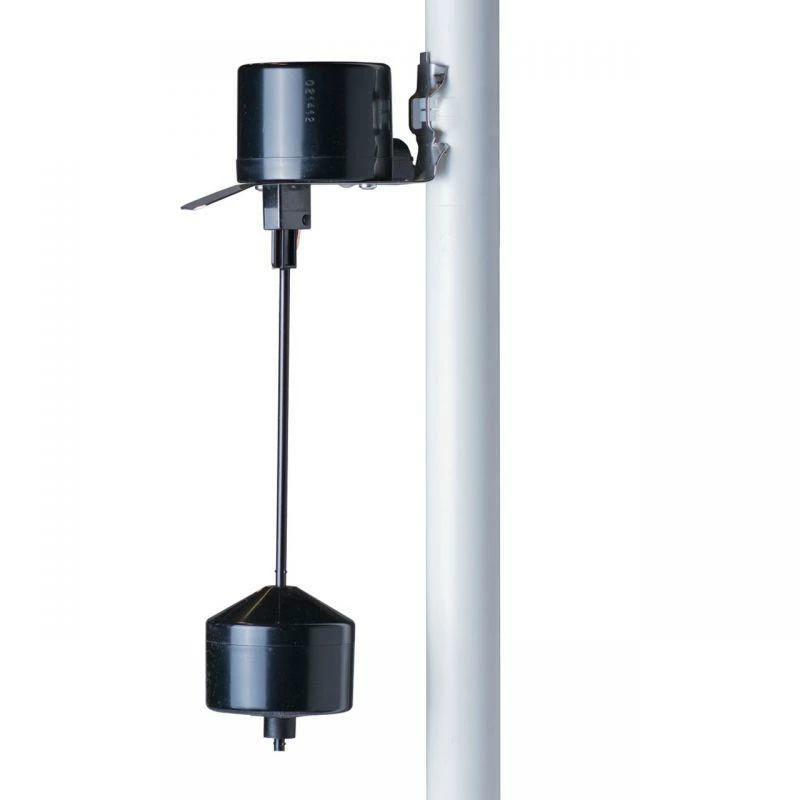

SJE Rhombus SJE VerticalMaster13 Amp Sump Pump Float Switch Assembly

The SJE VerticalMaster Piggyback Plug Sump Pump Float Switch is a mechanically activated, vertically operating non-mercury pump switch designed for direct control of any 120 volt submersible sump pump up to 1/2 HP and 13 amps FLA. With an adjustable pumping range of 0.75″ to 6.5″ it is an excellent choice for limited space applications such as sump pumps, effluent chambers and laundry trays.

SJE 120V Piggyback Plug Pump Switch Assembly includes a stainless steel mounting bracket which allows the float switch assembly to be mounted to most pumps and / or discharge pipes.

The piggyback plug allows the pump to be automatically controlled by the float switch. Alternatively, the pump can be unplugged from the piggyback terminal and plugged directly into an electrical receptacle for manual operation.

The SJE VerticalMaster Piggyback Plug Pump Switch Assembly is UL recognized and CSA Certified. The float switch carries a 5-year manufacturer’s warranty.
