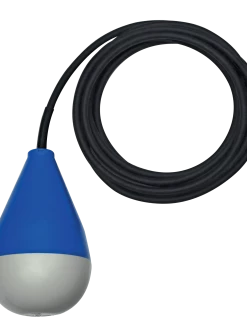

SJE Rhombus SJE MegaMaster Non-Mercury Pump Control Float Switch

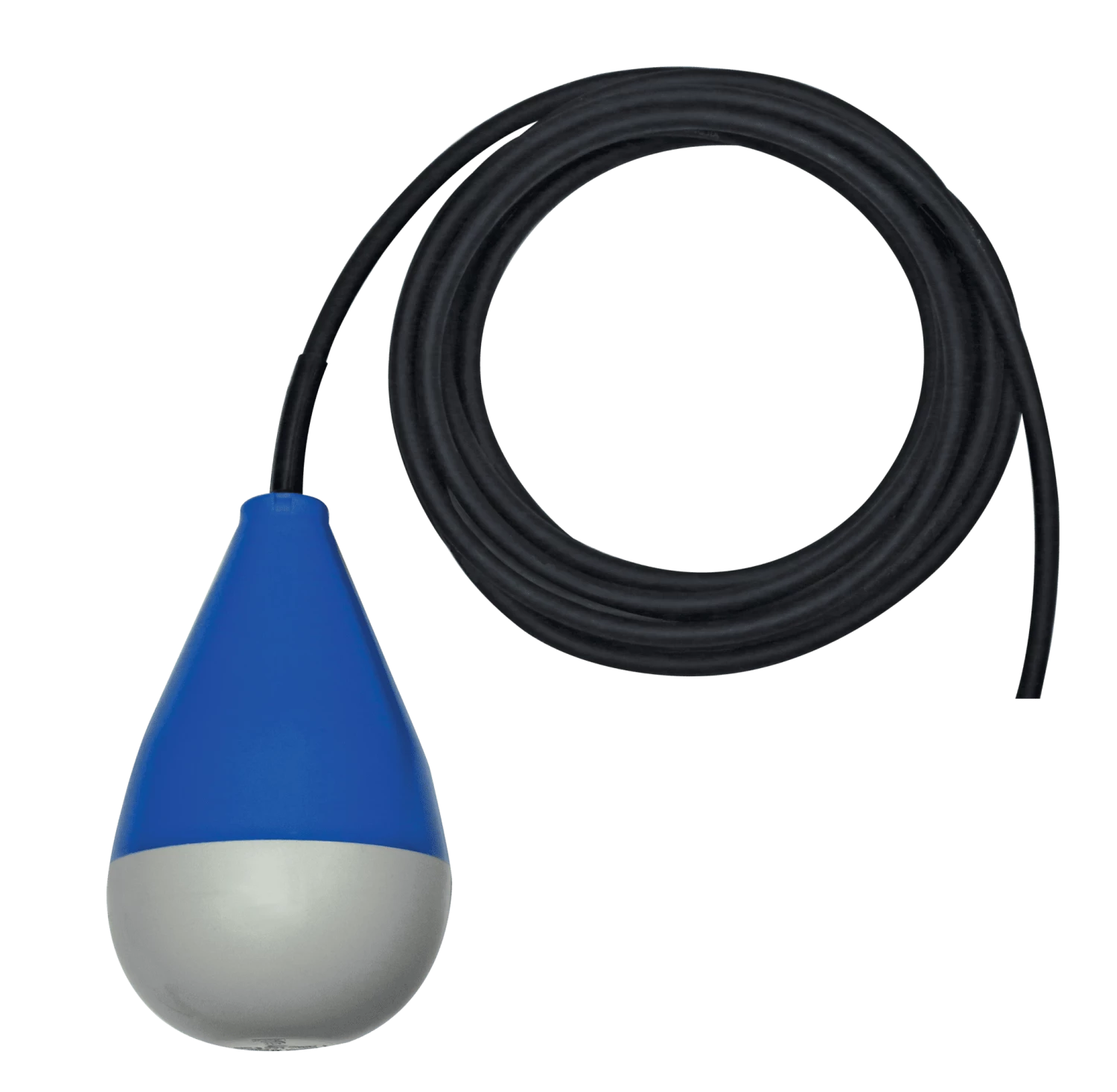

The SJE MegaMaster is designed for liquid level control in municipal wastewater pumping applications. It is an excellent and low cost alternative to the similarly styled European liquid level regulators. The internally weighted two-color float housing provides easy identification of float position. It is an excellent solution for sewage lift stations with high grease content.

The internal switching mechanism contains unique gold cross-point contacts, providing precision and reliable control signals up to 1 amp. The SJE MegaMaster™ control switch can be wired to work in either normally open or normally closed applications. It is not sensitive to rotation.

Normally Open Models (high level): The control switch turns on (closes) when the float tips slightly above horizontal signaling a high level and turns off (opens) when the float drops slightly below horizontal.

Normally Closed Models (low levels): The control switch turns on (closes) when the float tips slightly below horizontal signaling a low level and turns off (opens) when the float tips slightly above horizontal.

SJE MegaMaster Municipal Wastewater Pump Control Switch is made in the USA, is CSA and UL approved, and is warrantied by the manufacturer for five years. It is available in four cable lengths: 25′, 50′, 75′ and 100′
