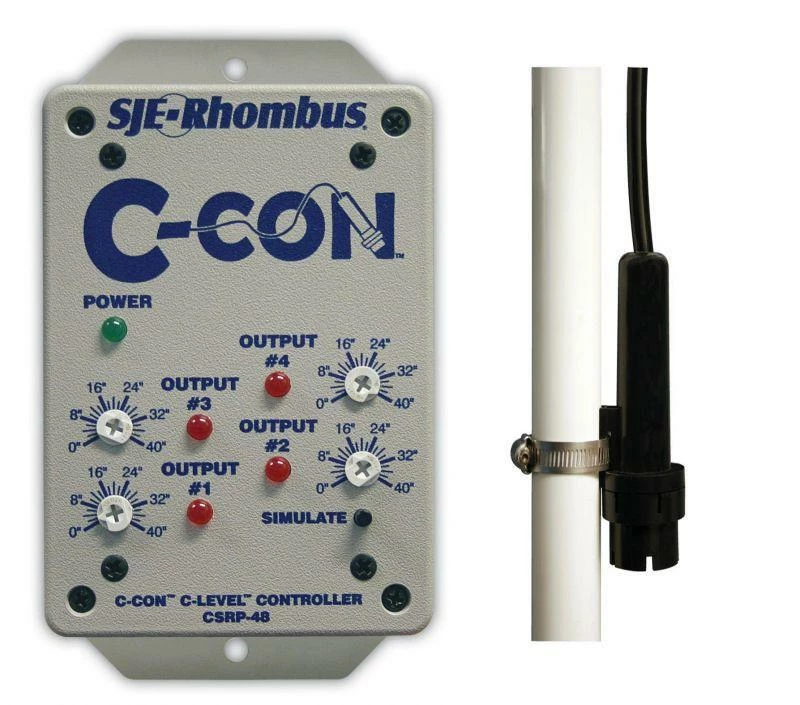

SJE Rhombus C-Con Float Switch To Pressure Sensor Converter Box

The SJE Rhombus C-Con Converter Box allows most lift station control panels to convert from (4) float switches to one single C-Level pressure sensor. Pump on and off levels can be conveniently set and adjusted by using the four output dials on the converter box face, eliminating the need to go into the tank to move float tether points. Works well in confined space sewage lift stations with high grease concentrations. Works well with most simplex and duplex control panels.

• Green power on indicator.

• Four independently adjustable output set points with red LED status indicators.

• Simulate button for testing proper wiring of outputs.

• Factory-installed output and power wires.

• Small 3″ x 4.25″ x 1.25″ NEMA 1 converter box retrofits easily into most control panels.

• Output contact rating is 3 amp, 240 volt.

• Not approved for Intrinsically Safe locations.

The SJE Rhombus C-Con Float Switch to Pressure Sensor Converter Box is available with either a 20′ or 40′ cable length.
