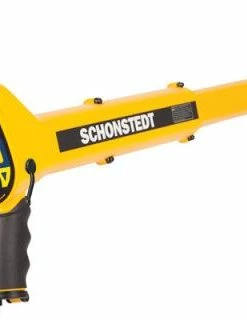

Schonstedt GA-92XTd Extendable Magnetic Locator Pipe Inspection & Locators

The Schonstedt GA-92XTd Extendable Magnetic Locator is the most portable magnetic locator ever made.

The Schonstedt magnetic locator detect the magnetic fields of all ferromagnetic objects – property markers, manholes, septic tanks, well casings, valve boxes, curb stop boxes, cast iron pipes, steel drums, unexploded ordinance – up to sixteen feet below the surface.

The Schonstedt GA-92XTd Locator:

• Extends for greater sensitivity, retracts for portability and storage

• One handed operation

• Audio output – increases or decreases with signal strength (gradient field intensity). Frequency range 30 to 4000 Hz

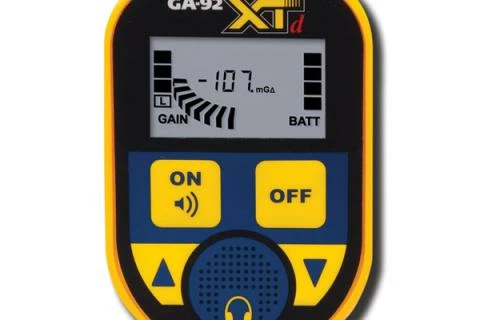

• Visual output – expanding digital bar graphs indicate polarity (positive or negative) and signal strength. Range – 0 to 500 mG (milligauss)

• 4-segment LCD battery indicator (unit is powered by one 9V battery – 24 hrs life)

• 3-level volume – muted, medium, maximum

• 4-level LCD gain – Low (L), Medium (M), High (H), Extra High (XH)

• Water resistant length – 11.5″ (only when operated in open position)

• Overall length: Open – 26″, Closed – 15.5″

• Rugged cast and holster included

• Made in USA

The Schonstedt GA-92XTd Extendable Magnetic Locator has a 7 year manufacturer’s warranty.
