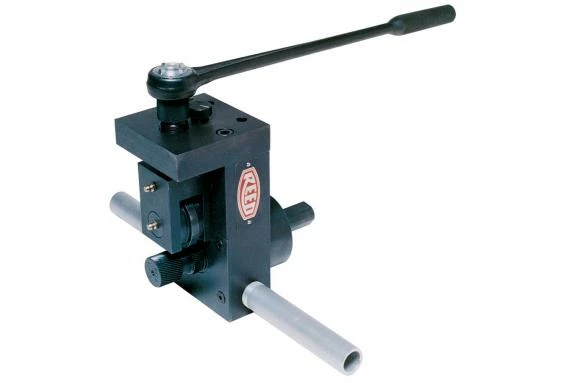

Pipe Tools Reed RG6S Portable Roll Groover

The RG6 Roll Groover is designed for use with the Reed 5301PD Power Drive, 38 RPM models only. The Reed RG6S Roll Groover is designed to form standard rolled grooves in steel, stainless steel and aluminum pipe, from 1-1/4” to 6”, in both Schedule 10 and Schedule 40. It also grooves PVC. The groove is formed by the groove roll which is fed into the pipe wall. The pipe is supported on the inside by a drive roll, which is relieved to permit pipe wall deformation. The formed grooves comply with the specifications required for mechanical coupling systems. The only adjustment required is for the depth of the groove.

Groovable Pipe Lengths – Inches
