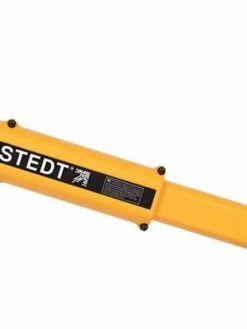

Name: Pipe Inspection &amp; Locators Schonstedt XT-512 Sonde And Camera Locator With Passive Cable Locating And Carrying Bag
SKU: pipe-inspection-locators-6558690574397
Availability: InStock

Pipe Inspection & Locators Schonstedt XT-512 Sonde And Camera Locator With Passive Cable Locating And Carrying Bag

Original price was: $568.00.Current price is: $92.99.

Nature-friendly materials, for a better planet.

The Quality Choice for Smart Shoppers

There are quality problems, free return and exchange

Free Shipping over $25

The XT-512 combines the portability of the XTpc package with the low frequency sonde and passive locating capability found in larger more cumbersome locators. With the XT-512 you can locate and determine the depth of your sewer/pipe inspection camera or a small sonde. The XT512 is useful in locating blockages and obstructions in non metallic pipe.

Operates on 512 Hz Frequency mode
Passive detection of 50Hz or 60Hz, and sonde
One button depth measurement
Digital readout display of signal strength (peak)
Audio & Visual Output
Battery & Sensitivity Indicators
Ergonomic & lightweight
Smallest for easy storage
3-year warranty

Common

BATTERY	One 9V battery
BATTER LIFE	12 hours (intermittent use)
AUDIO OUTPUT	10 – 1400 Hz determined by signal strength 0 – 70 db SPL (Sound Pressure Level), volume controlled
WEIGHT	Under 2.8 lbs
OPERATING TEMP	-4°F to 140°F (-20°C to 70°C)
OVERALL DIMENSIONS	Closed: 17.5″ x 3″ x 8.5″ (44 cm x 7.6 cm x 21.5 cm) Extended:/ 27.7″ x 3″ x 8.5″ (70 cm x 7.6 cm x 21.5 cm)
SENSORS	Split angled sensors to derive peak and null signals

Sonde/Camera Locator

OPERATING FREQUENCY	512Hz
MODULATION	none
MAX. DEPTH CAPABILITY	Typical 5-8′ (1.5 – 2.5 m) dependent on signal level emitted by sonde

Passive Cable Locator

OPERATING FREQUENCY	60 or 50 Hz, factory set
MODULATION	none
MAX. DEPTH CAPABILITY	Typical 5-8′ (1.5 – 2.5 m) dependent on signal level emitted by sonde
