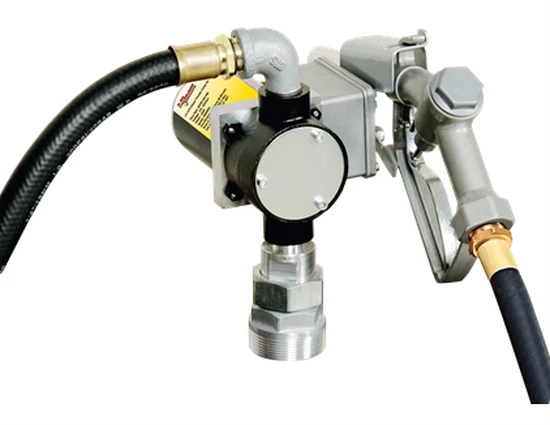

Lu-Max Diesel Fuel Transfer Pump Kit

The Lumax Diesel Fuel Transfer Pump offers exceptional durability and is ideal for transferring diesel, light oils and kerosene. It is not designed for use with gasoline. The self-priming pump with direct transmission extends pump life while preventing over-pressurization. Designed with a continuous 30-minute duty cycle and self-priming mechanism to prevent premature motor and pump damage due to dry operation.

Smooth operating, high performance 3600 RPM 12V DC motor efficiently transfers 8 GPM. Features a by-pass valve for motor protection and strong seals for leak protection. Includes 2M battery cable with clamps for user convenience. Unit is barrel or tank mountable.

Includes: diesel transfer pump, 3/4″ aluminum nozzle, nozzle holder, steel telescopic suction pipe, 13′ of 3/4″ fuel hose, 2″ threaded bung adapter coupling.

• Flow rate – 8 GPM

• Voltage – 12V, 15 amps

• Power – 120W

• Motor – 1/6 HP, 3600 RPM

• Cord length – 6.5 feet with clamps for user convenience

• Continuous duty cycle: 30 mins

• Rated to 14.5 PSI 1M lift, 4M head

• Inlet & outlet are 3/4″ diameter
