Jet 310008 Auto Ranging Digital Multimeter Hand Tools

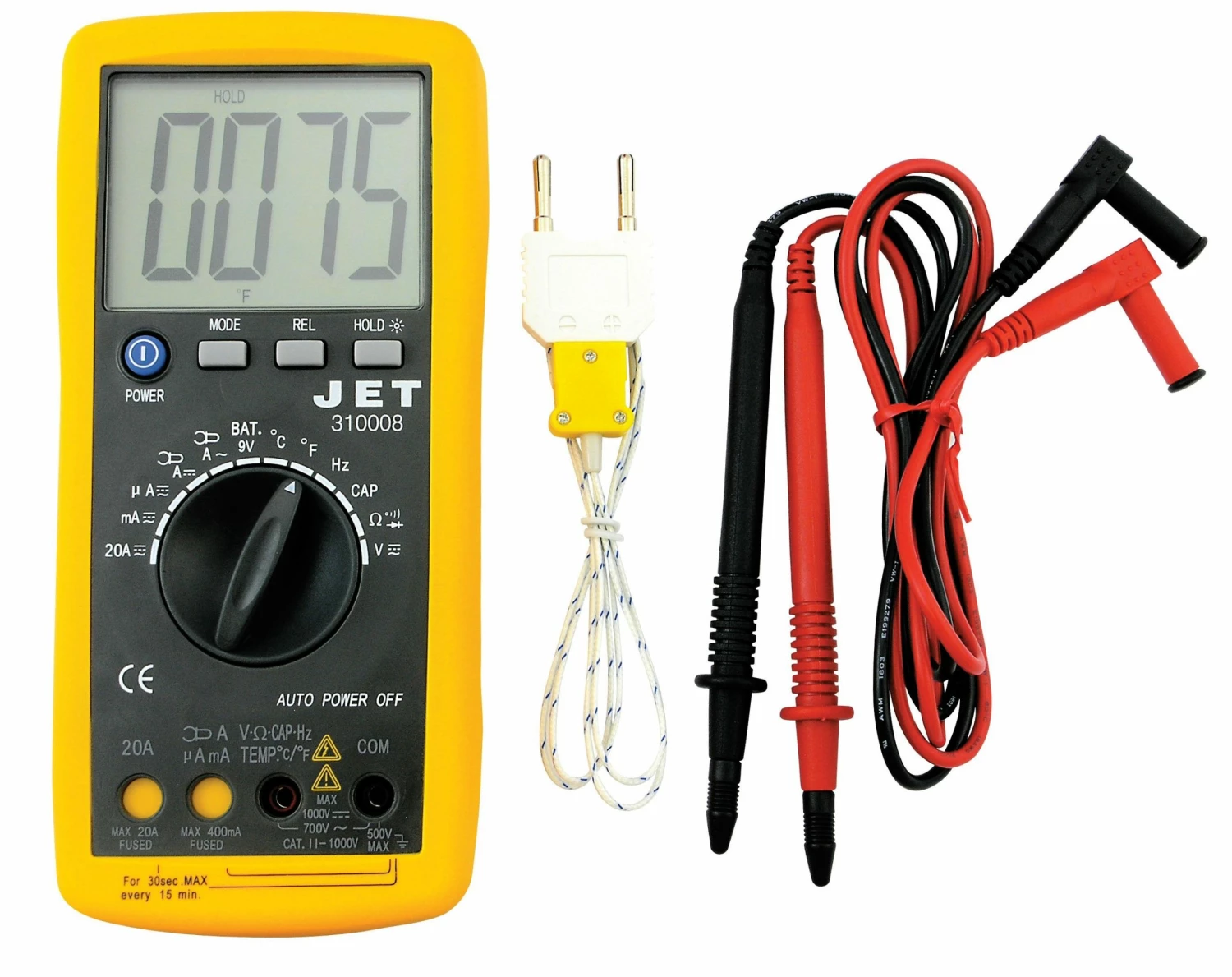

Jet 310008 Auto Ranging Digital Multimeter is a versatile meter for a wide range of electrical tests. It features auto shut-off, large LCD display, low battery indicator, overload protection. The TPR shroud protects meter.

This multi meter can be used with clamp on adapter for expanded versatility Includes test leads, K-type thermo-coupler and 9V battery. Automatically sets correct range when test function is selected. Mechanically prevents incorrect connection of test leads. Data hold function.

Designed to safety standard EN61010-1; CAT II 600V



Specifications
Application	AC/DC current, AC/DC voltage, resistance, capacitance, frequency, temperature, diode check, transistor hFE
AC Current	400u-4000u-40m-400m-4A-20A
DC Current	400u-4000u-40m-400m-4A-20A
AC Voltage	400mV-4V-40V-400V-750V
DC Voltage	400mV-4V-40V-400V-1000V
Resistance	200-2k-40k-400k-4 Mohms-40 Mohms
Frequency	9.999Hz – 9.999MHz
Diode Check	Test current of 0.3mA, open circuit voltage of 1.5V
Duty Cycle	0.1% – 99.9%
Continuity Check	Threshold 30 ohms, continuity beeper 2.7 kHz
Polarity Detection	N/A
Single Pole Phase Test	N/A
Continuity Test	N/A
Rotary Field Indication	N/A
Capacitance	40nF-400nF-4uF-40uF-100uF
Temperature	-20°C to 760°C
hFE	Vce ~3V; 1b ~ 10Ua
