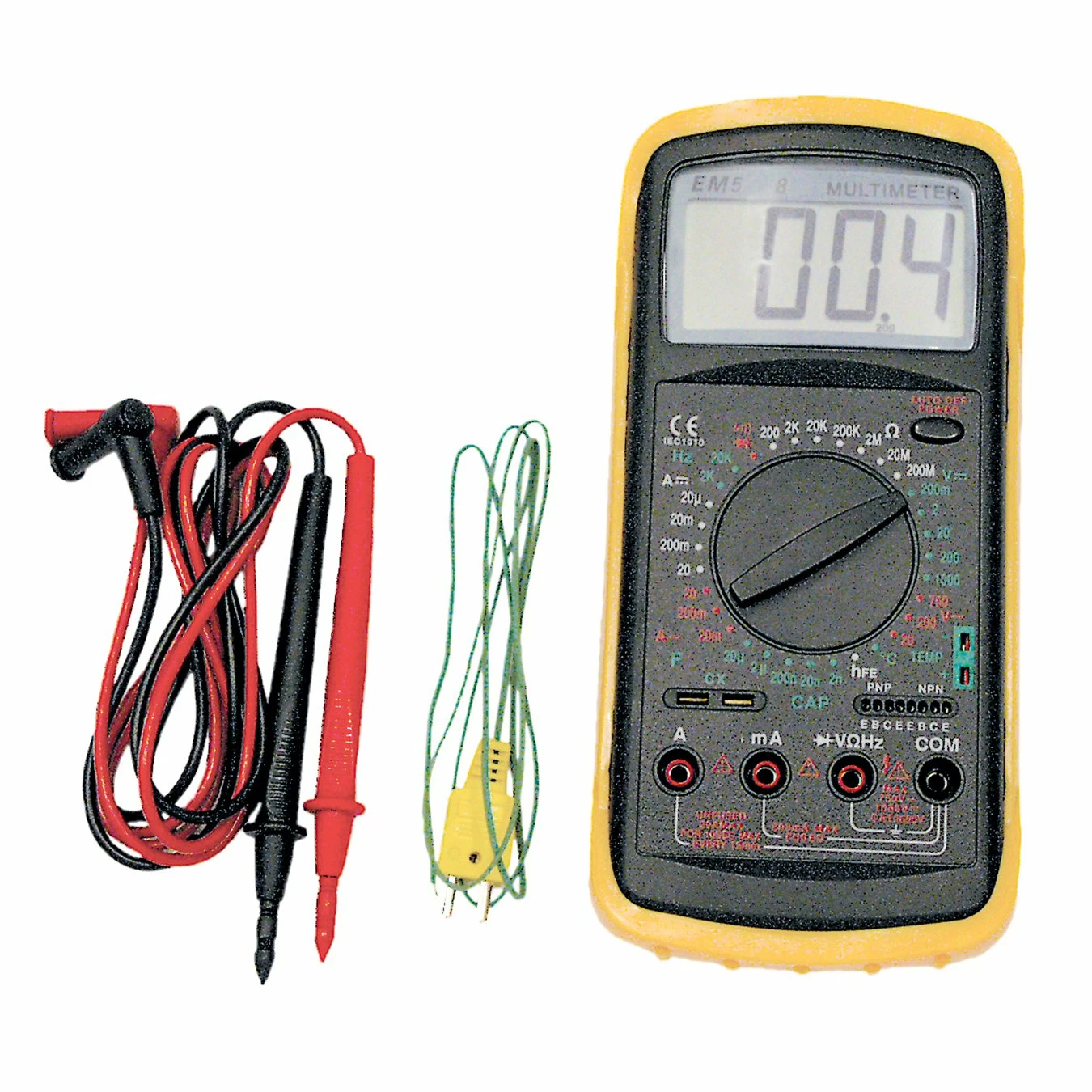

Jet 310006 Digital Multimeter is a versatile meter for a wide range of electrical tests Features auto shut-off, large LCD display, low battery indicator, overload protection. A TPR shroud protects the meter. Can be used with clamp on adapter for expanded versatility.
Includes test leads, K-type thermo-coupler and 9V battery. Designed to safety standard IEC-1010; CAT II 600V.
| Specifications | |
| Application | AC/DC current, AC/DC voltage, resistance, capacitance, frequency, temperature, diode check, transistor hFE |
| AC Current | 20u-20m-200m-20A |
| DC Current | 20m-200m-20A |
| AC Voltage | 20-200-750V |
| DC Voltage | 200m-2-20-200-1000V |
| Resistance | 200-2k-20k-200k-2M-20M-20 Mohms |
| Frequency | 2k-20kHz |
| Diode Check | 2.8V/1mA |
| Polarity Detection | N/A |
| Single Pole Phase Test | N/A |
| Continuity Test | N/A |
| Rotary Field Indication | N/A |
| Capacitance | 2n-20n-200n-2u-20uF |
| Temperature | -40°C to 1000°C |
| hFE | Vce ~3V; 1b ~ 10Ua |
