HCP Model AN-22-12 2″ Submersible Dewatering Pump | 1 HP | 240V | 132 GPM Dewatering Pumps

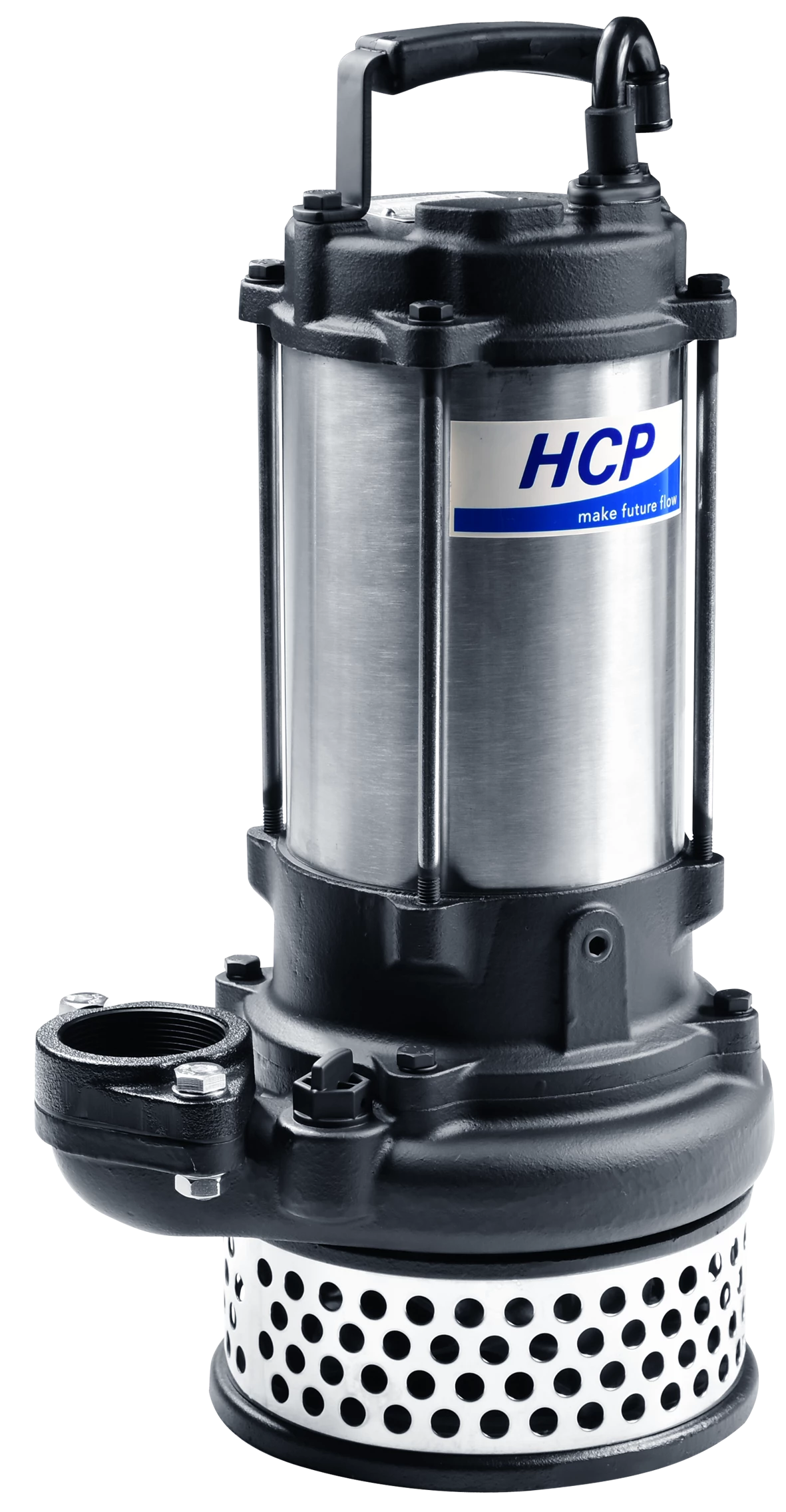

The Model AN-22-12 HCP Submersible Dewatering Pump is suitable for dewatering tanks, excavations, basins, pools and ponds. The AN-22-12 has a carbon/ceramic upper side and silicon/silicon lower side seal in an oil filled chamber filled with food grade oil. The upper cover, volute and impeller are made with cast iron. The motor frame is constructed with 304 stainless steel.

The motor is equipped with a built-in thermal protector to prevent pump overheating. An optional piggyback float switch can automatically control pump on/off function based on water level.

The Model AN-22-12 HCP Dewatering Pump measures 12″ x 11″ x 23″ tall and weighs 79 lbs.

• 2 Inch Discharge, 3/8″ Solids


• 1 HP, 240V, 9.6A, 3420 RPM. Cable Length is 30′

• Max Flow: 132 GPM

• Max Head: 80”

• cUL and CSA certified
