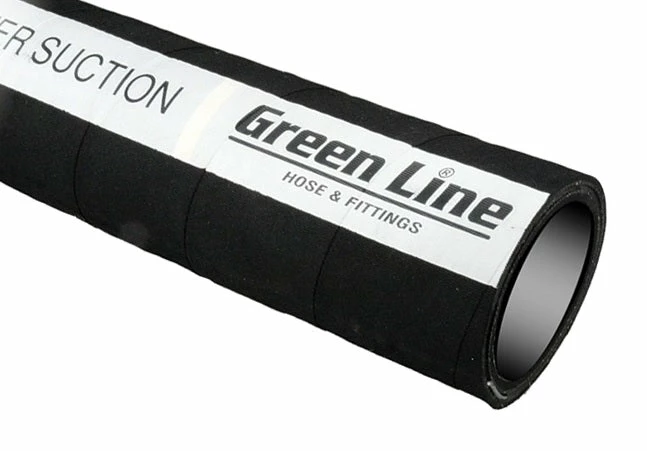

EPDM rubber water suction hose is designed for improved performance and weathering over other black rubber suction hoses. Featuring an improved bend radius, this hose is also easier to handle and work with in the field. Commonly used for glycol supply lines and water suction applications.
Inner tube: Smooth EPDM rubber
Reinforcement: Heavy wire helix embedded between layers of synthetic textile cords.
Cover: Black, wrapped finish made of weather and abrasion resistant EPDM rubber with a white stripe.
-
Full vacuum rating: 29″ Hg.
-
Temperature Range: -30°C to +80°C.
How to Order: If you would like a 20 foot coil of hose, select the “Per Foot” box. Then enter quantity of 20 in the “Add to Cart” box. This will ensure you get a 20 foot length of hose.
| Hose Size | Working Pressure | Bend Radius | Outside Diameter | Recommended SS Gear Clamp | Recommended Bolt Clamp |
| 2″ | 150 PSI | 11″ | 2.44″ | 2.06″ to 3.00″ G8-40 | 2.48″ to 2.68″ G94-6368 |
| 3″ | 150 PSI | 13″ | 3.43″ | 3.06″ to 4.00″ G8-56 | 3.58″ to 3.82″ G94-9197 |
| 4″ | 150 PSI | 17″ | 4.49 | 3.50″ to 5.50″ G8-80 | 4.41″ to 4.76″ G94-112121 |
