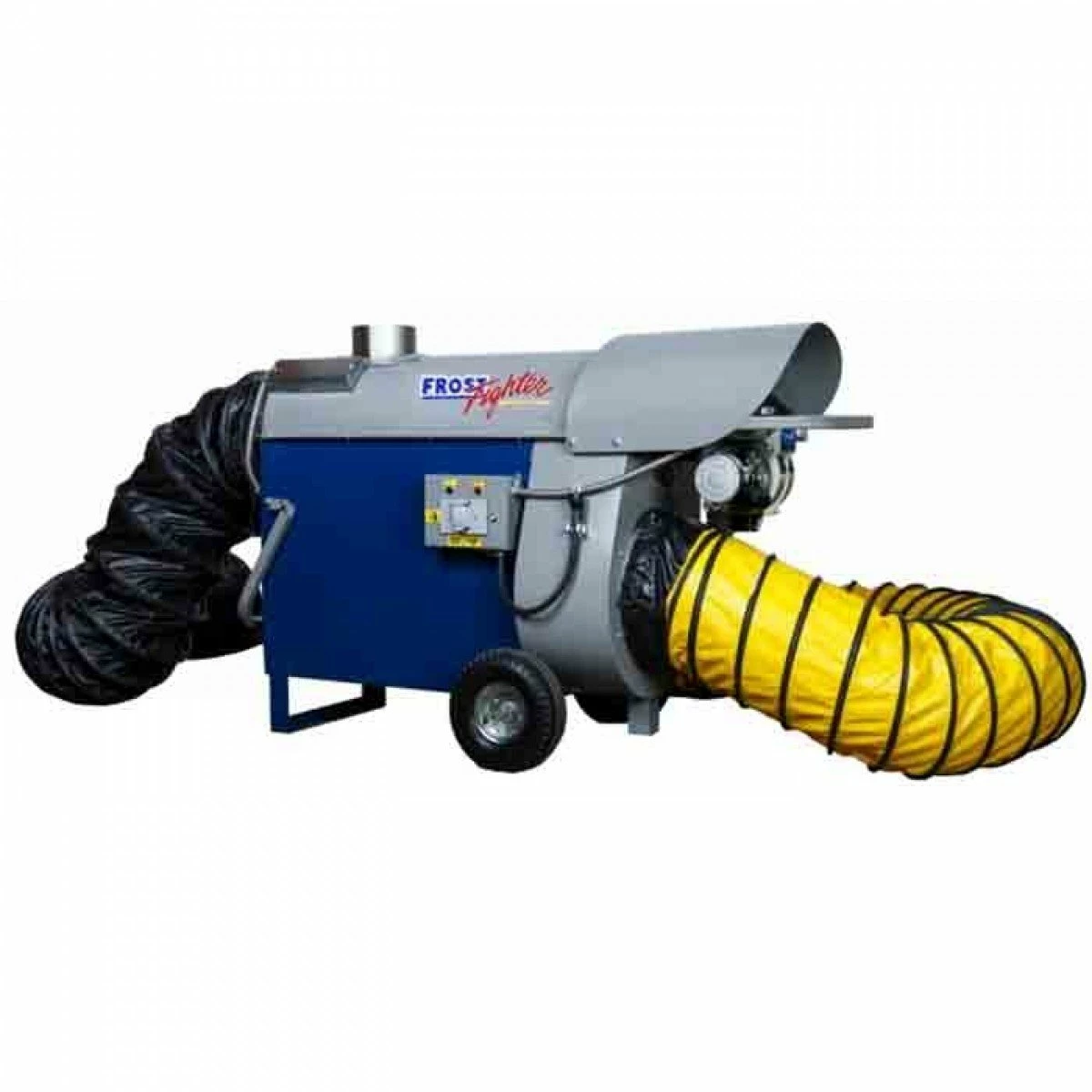

Frost Fighter IDH200QR Indirect Fired Heater | 170,000 BTU/h

Compact, lightweight and extremely powerful, Frost Fighter’s IDH200QR Indirect fired heater is equipped with standard recirculation, high static pressure, low dB noise level and is capable of up delivering hot air through up to 100 ft of total duct length.

• Maximum heating capacity of 170,000 BTU/h.

• Heated air volume of 1610 CFM.

• Maximum static pressure 5.0″.

• Quiet running sound level < 74dB for noise sensitive areas.

• 12″ single outlet that can accommodate up to 100 feet of supply duct


• 12″ intake that can accommodate up to 50 feet of return duct to significantly reduce fuel consumption and heating times (length of intake duct attached requires equal reduction from 100 ft of supply duct; ex 25ft intake = 75ft supply)

• Proven “Multi-Pass” stainless steel heat exchanger provides unsurpassed heat transfer and high 81% efficiency


• Fully independent fan & combustion air provides consistent and dependable operation in cold weather and ensures pre-heating to eliminate cold air delivery at start-up.


• High static pressure/high volume fan provides large volumes of air movement with or without ducting attached


• Compact design with pneumatic wheels and handles to allow to easy transport. Durable powder coated finish.

• Ball valve switchover from propane to natural gas (LP/NG model only)

• Ducting not included. Shown in photo for illustrative purposes.


Meets all applicable CSA approvals/certifications.

	Oil/Diesel Heater Specs	Propane/Natural Gas Heater Specs
Heating Capacity	170,000 BTU/h	170,000 BTU/h
Fuel Requirement	Oil/Diesel	LP/NG
Heated Air Volume	1610 CFM	1610 CFM
Max. Static Pressure	5.0″	5.0″
Discharge Temp	Up to 230°F (110°C)	Up to 190°F (88°C)
Fuel Tank Cap.	18 US Gallons	N/A
Approx. Run Time	14-16 hrs	N/A
Supply Gas Pressure	N/A	7-14″ wc (1/2 PSI)
Manifold Pressure	N/A	3.5″/NG – 1.8″/LP
Required Power	120V/15amp/60Hz	120V/15amp/60Hz
Crated Dimensions	64″ x 36″ x 42″	64″ x 36″ x 42″
Crated Weight	320 lbs	320 lbs
Unit Dimensions	52″ x 22″ x 36″	52″ x 22″ x 36″
Unit Weight Dry	209 lbs	209 lbs
Unit Weight w/ Fuel	328 lbs	N/A

For additional information, please watch the video under the Videos tab
