Flotec FP7135 Pre-Charged Pressure Tank (Vertical) | 119 Gallon Well Pumps And Pressure Tanks

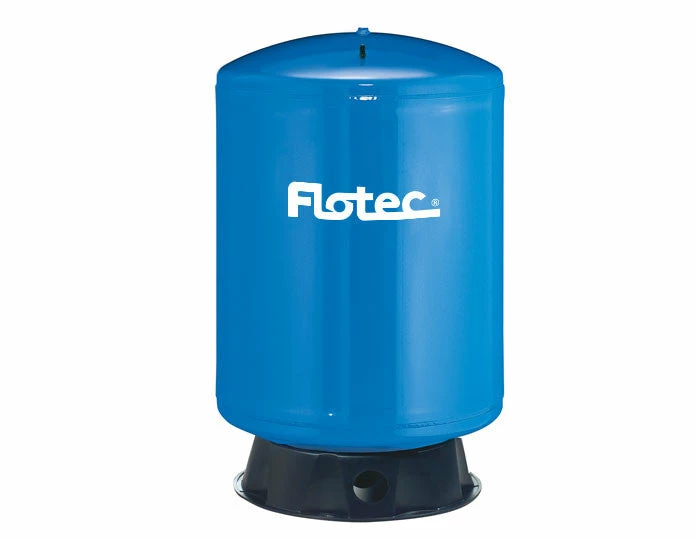

This 119 gallon FP7135 Pre-Charged Pressure Tank provides up to 41.3 gallons of water capacity between pump cycles for maximum system life. A replaceable internal PVC bladder provides the same / better performance than a 320 gallon Air-Over-Water pressure tank.

The Flotec FP7135 Pre-Charged Pressure Tank is ideal for businesses, apartments and dwellings with 3 – 4 families. A tough appliance like finish provides an extended tank life.

Flotec FP7135 Well Pump Pressure Tank features include:

CSA, NSF / ANSI 61 approved for drinking water

BODY CONSTRUCTION:  Heavy Gauge Steel

BODY FINISH:  Electrostatically Applied Baked on Polyester

TANK PRECHARGE:  40 psi Nitrogen-Rich charge

TANK CAPACITY:  119 gallons

EQUIVALENCY RATING:  320 gallons

DRAWDOWN WITH 20/40 SWITCH:  41.3 gal

DRAWDOWN WITH 30/50 SWITCH:  35.4 gal

DRAWDOWN WITH 40/60 SWITCH:  31 gal

BLADDER / WATER CELL:  Replaceable One Piece Seamless PVC

TANK DIAMETER:  24″

TANK HEIGHT:  68″

FLANGE:  Glass-Filled Polypropylene

PIPE TAP SIZE:  1-1/4″ NPT

MAXIMUM PRESSURE RATING:  100 PSI

CSA, NSF, ANSI 61 Approved

5 Year Limited Warranty
