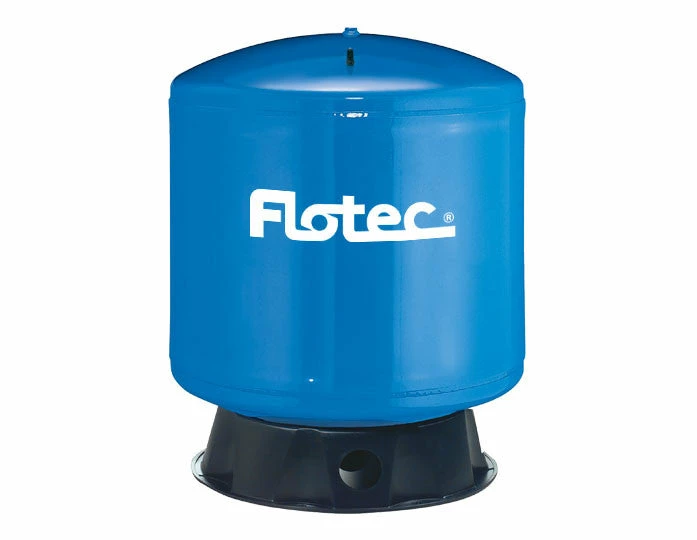

Flotec FP7125 Pre-Charged Pressure Tank (Vertical) | 50 Gallon Well Pumps And Pressure Tanks

The 50 Gallon Flotec FP7125 Vertical  Pre-Charged Pressure Tank provides up to 18.3 gallons of water capacity between pump cycles for maximum system life. An internal PVC bladder provides the same / better performance as a 120 gallon Air-Over-Water pressure tank.

The Flotec FP7125 Pre-Charged Pressure Tank is ideal for large multi-bathroom homes, commercial establishments and other high water use facilities. A tough appliance like finish provides an extended tank life.

Flotec FP7125 Well Pump Pressure Tank features include:

BODY CONSTRUCTION:  Heavy Gauge Steel

BODY FINISH:  Electrostatically Applied Baked on Polyester

TANK PRECHARGE:  40 psi Nitrogen-Rich Charge

TANK CAPACITY:  50 gal

EQUIVALENCY RATING:  120 gal

DRAWDOWN WITH 20/40 SWITCH:  18.3 gal

DRAWDOWN WITH 30/50 SWITCH:  15.5 gal

DRAWDOWN WITH 40/60 SWITCH:  13.4 gal

BLADDER / WATER CELL:  Replaceable One Piece Seamless PVC

TANK DIAMETER:  24″

TANK HEIGHT:  35″

FLANGE:  Glass-Filled Polypropylene

PIPE TAP SIZE:  1-1/4″ NPT

MAXIMUM PRESSURE RATING:  100 PSI

CSA, NSF, ANSI 61 Approved

5 Year Limited Warranty
