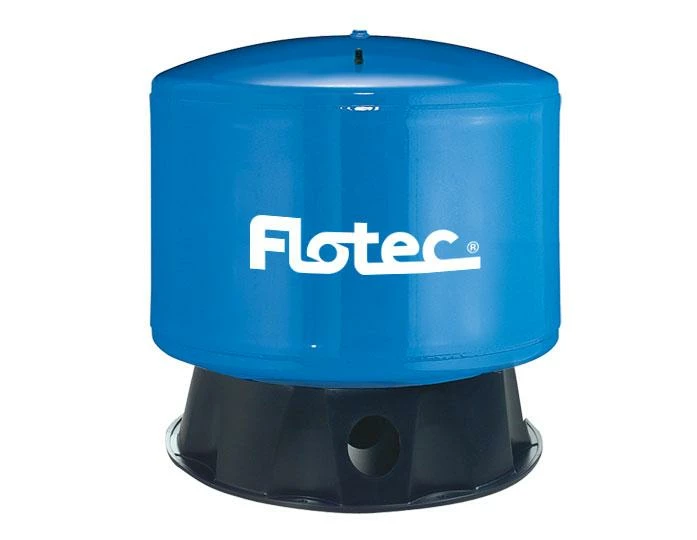

Flotec FP7110 Pre-Charged Pressure Tank (Vertical – Short) | 19 Gallon Well Pumps And Pressure Tanks

The 19 gallon Flotec FP7110 pre-charged pressure tank provides up to 6.9 gallons of water capacity between pump cycles for maximum system life. An internal PVC bladder provides the same / better performance as a 42 gallon Air-Over-Water pressure tank.

The Flotec FP7110 Pre-Charged Pressure Tank is ideal for cabins and summer homes that have continuous water supply requirements such as lawn sprinkling and garden watering. A tough appliance like finish provides an extended tank life.

Flotec FP7110T Well Pump Pressure Tank features include:

BODY CONSTRUCTION:  Heavy Gauge Steel

BODY FINISH:  Electrostatically Applied Baked On Polyester

TANK PRECHARGE:  40 psi Nitrogen-Rich charge

TANK CAPACITY:  19 gal

EQUIVALENCY RATING:  42 gal

DRAW DOWN WITH 20/40 SWITCH:  6.9 gal

DRAW DOWN WITH 30/50 SWITCH:  5.8 gal

DRAW DOWN WITH 40/60 SWITCH:  5.0 gal

BLADDER / WATER CELL:  Replaceable One Piece Seamless PVC

TANK DIAMETER:  20″

TANK HEIGHT:  21″

FLANGE:  Glass-Filled Polypropylene

PIPE TAP SIZE:  1″ NPT

MAXIMUM PRESSURE RATING:  100 PSI

CSA, NSF, ANSI 61 Approved

5 Year Limited Warranty
