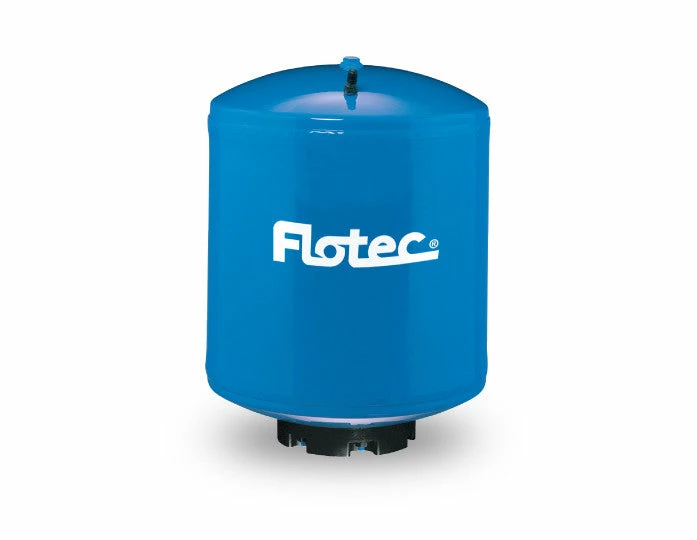

Flotec FP7100 Pre-Charged Pressure Tank (Vertical) | 6 Gallon Well Pumps And Pressure Tanks

The 6 Gallon Flotec FP7100 pre-charged pressure tank provides up to 2.2 gallons of water capacity between pump cycles for maximum system life. An internal PVC bladder provides the same / better performance as a 15 gallon Air-Over-Water pressure tank.

The Flotec FP7100 Pre-Charged Pressure Tank is ideal for cabins and summer homes that have continuous water supply requirements such as lawn sprinkling and garden watering. A tough appliance like finish provides an extended tank life.

Flotec FP7100Well Pump Pressure Tank features include:

CSA, NSF and ANSI 61 approved for drinking water

BODY CONSTRUCTION:  Heavy Gauge Steel

BODY FINISH:  Electrostatically Applied Baked-On Polyester

TANK PRECHARGE:  40 psi Nitrogen-Rich charge

TANK CAPACITY:  6 gal

EQUIVALENCY RATING:  15 gal

DRAWDOWN WITH 20/40 SWITCH:  2.2 gal

DRAWDOWN WITH 30/50 SWITCH:  1.8 gal

DRAWDOWN WITH 40/60 SWITCH:  1.6 gal

BLADDER / WATER CELL:  One-Piece Seamless PVC

TANK DIAMETER:  12″

TANK HEIGHT:  16″

FLANGE:  Glass-Filled Polypropylene

PIPE TAP SIZE:  3/4″ NPT

MAXIMUM PRESSURE RATING:  100 PSI

5 year limited warranty
