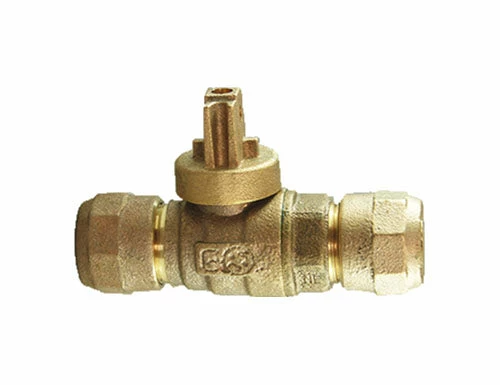

Cambridge Brass Waterworks Products Iron Pipe Size LF Brass Compression Curb Stop

Lead Free brass curb stops are installed on the property line of homes and small commercial properties. They provide an easily located buried on/off valve for the water utility operator to temporarily isolate a water service from the water distribution system in case of leaks or a delinquent water bill payment.

Iron Pipe Size (IPS) pipes and fittings are common for 1-1/4″, 1-1/2″ and 2″ service lines. Copper tube size (CTS) pipe and fittings are most often used with 3/4″ and 1″ service lines. Insert stiffeners are required for all connections using flexible plastic pipe.

Installing a curb stop with PJ ends is quick and easy. Iron pipe or Iron Pipe Size (IPS) HDPE is stabbed through the nut and gasket/friction ring assembly to the stab depth. Hand tighten plus 1-1/2 turns to compress the Nitrile gasket and create a water tight seal. The stainless steel screw is tightened for pull-out strength.

These Cambridge Brass Ball Valve meet or exceed AWWA C800 and NSF 61 and 372 Standards.
